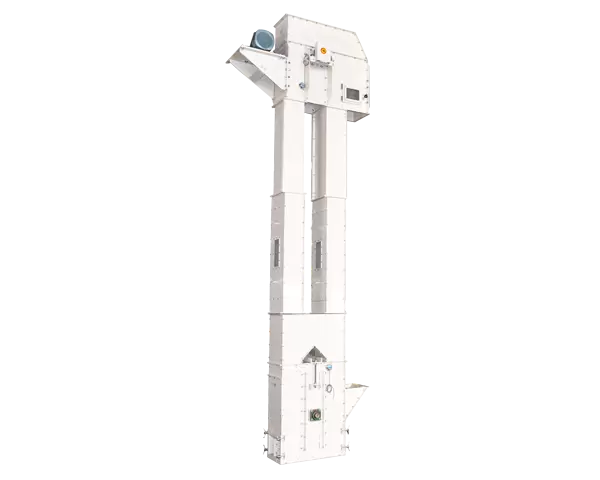

TDTG Series Bucket Elevator

TDTG series self-cleaning bucket elevator is applicable to continuous vertical conveying of powder, granular, and small block materials; Widely used in various feed mills, grain and oil, food, chemical, building materials and grain storage, port bulk material convey.
Machine Description

Compact structure, small size, less space;

Bucket elevator can be installed in the forward or reverse in the material receiving which according to required;

The head and tail pulleys are coated with glue to increase friction coefficient and improve transmission efficiency;

The transition section is added under the head pulley, and the discharge regulating plate and buffer chamber are provided to reduce the backflow of materials and increase the capacity; A replaceable wear plate is installed on the head;

The head is also provided with an explosion-proof opening, which can effectively prevent dust explosions;

The tension device adds a rubber spring buffer device to reduce vibration and prevent sudden overload from breaking the conveyor belt;

There are two sealing devices in the tension plate to overcome the material leakage of the adjustment plate;

Speed monitor and anti-deviation devices can be selected according to user requirements to ensure safe and normal production;

With back up device;

Device Parameters
ModelGrains (t/h)Powder (t/h)Power (kw)
TDTG 40/1811~2911~222.2~5.5
TDTG 40/2312~3912~292.2~7.5
TDTG 40/2825~4613~352.2~7.5
TDTG 50/2320~6517~612.2~11
TDTG 50/2832~8027~572.2~18.5
TDTG 60/3057~12253~925.5~18.5
TDTG 60/3370~15367~1107.5~18.5
TDTG 63/44150~200100~15018.5~30
